Instructions
For detailed guidance on proper setup, placement, and use of the Flamingo Funnel™ hands-free smoke capture device, please review the official Instructions for Use (IFU). This document includes step-by-step directions, warnings, and important safety information to ensure effective and compliant operation in the surgical environment. Below, you can also explore visual step-by-step guidance for general use, along with specific placement instructions tailored to common procedures.
Jump to:
General Instructions for Use

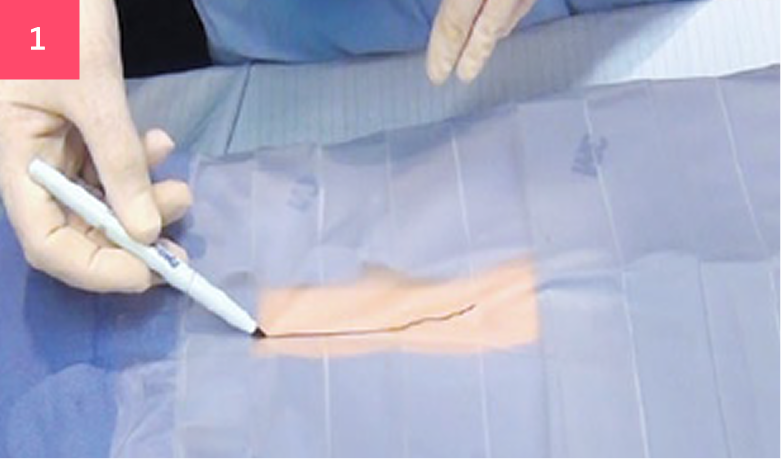

Before placement of product, prep skin and apply any clear plastic adhesive drape that may be used.

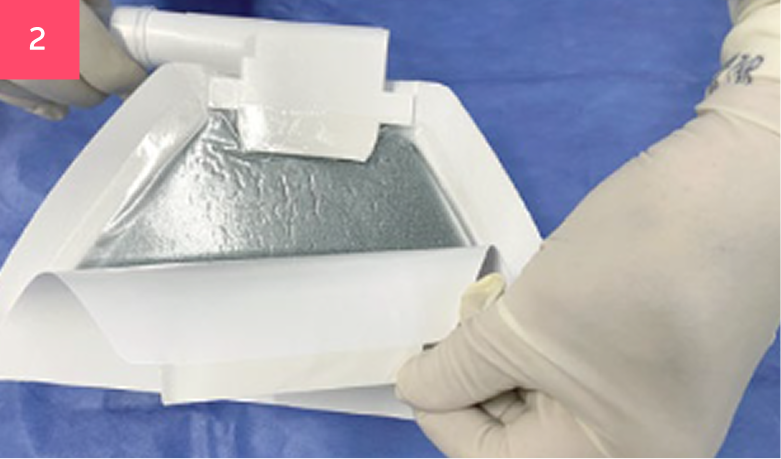

Remove release paper on plenum to expose adhesive layer.

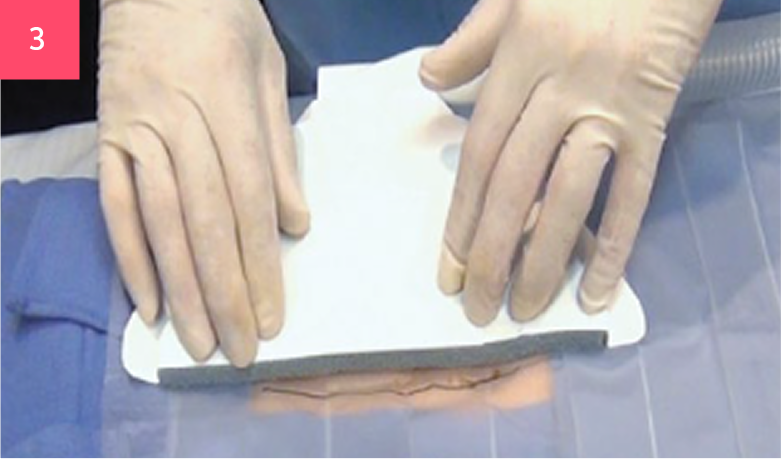

Place plenum within .5” – 1.5” of intended line of incision, on side that allows tubing to remain straight when connected to the smoke evacuator.

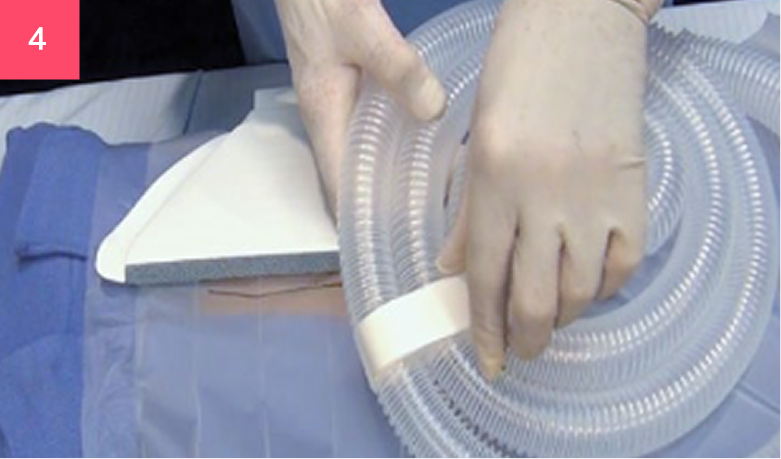

Remove both tapes from tubing and hand it off operating table.

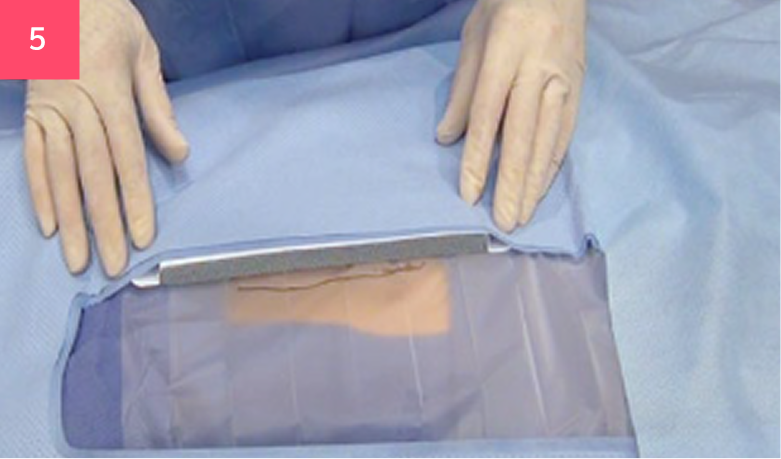

Place outer surgical drape over plenum. Avoid covering open cell foam.

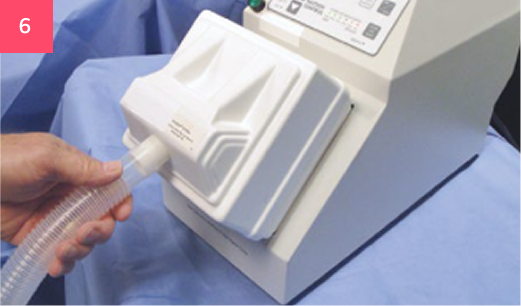

Attach tubing to ULPA filter of evacuator. Turn machine on to 100% continuous power and proceed with surgery.
Positioning for specific procedures

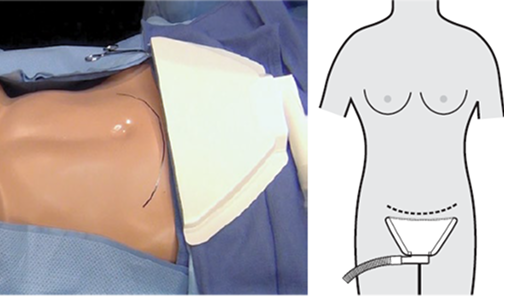

Place the Flamingo Funnel inferior to the curvilinear incision. Switch to the smaller size to capture smoke as the dissection moves cephalad.
If used for a C-Section, turn off the suction before the uterus is incised to prevent amniotic fluid from being sucked into the ULPA filter. Rely on Yankauer suction at this time. Restart suction when the uterus is being closed.

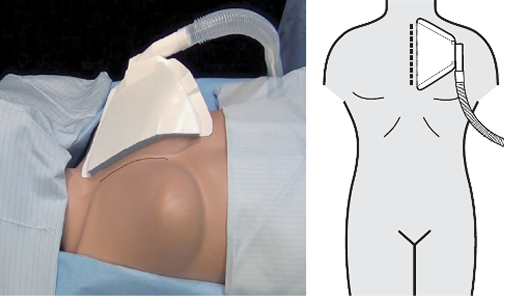

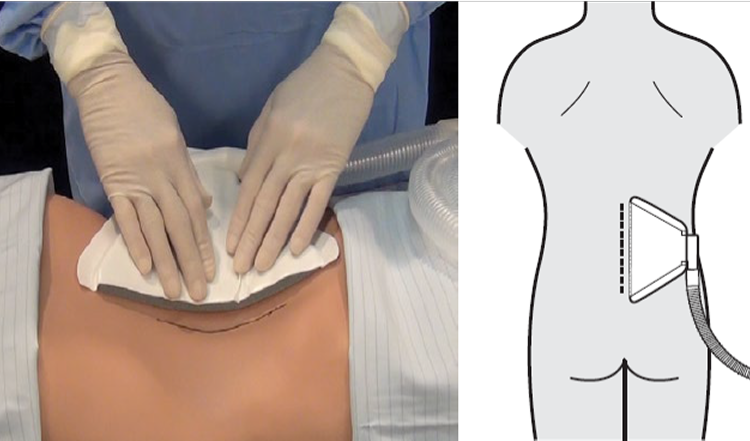

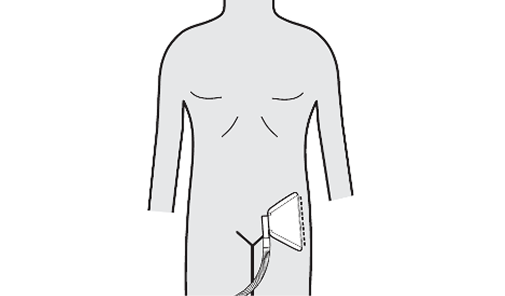

Place the plenum medial to and within 1”-1 1/2” of the incision.

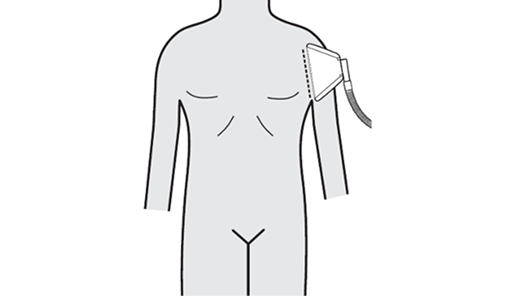

Place the plenum lateral to and within 1”-1 1/2” of the incision.
Place the plenum within 1”-1 ½” of the incision.

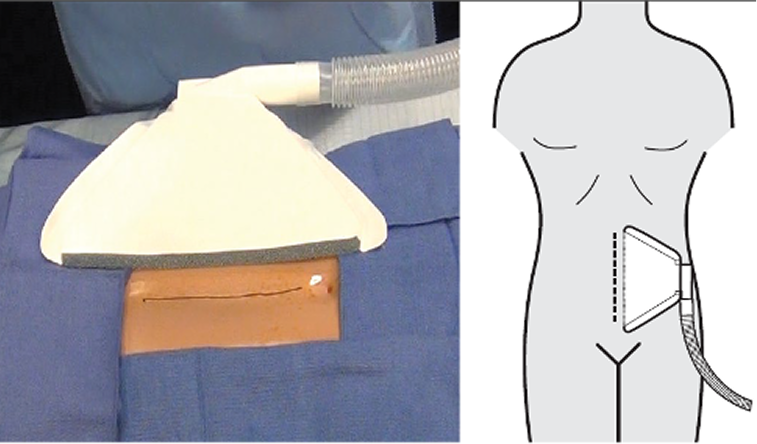

Place the plenum parallel to and within 1”-1 1/2” of the incision.

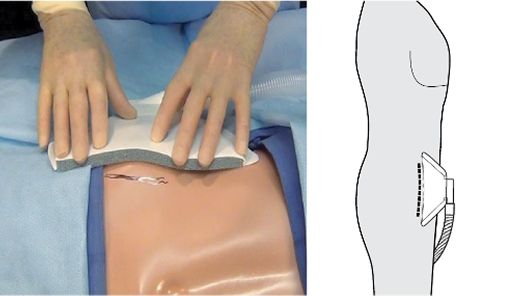

Place plenum parallel to and on the superior edge of the incision with a lateral approach.
Place the plenum superior to and within 1” of both planned incisions.

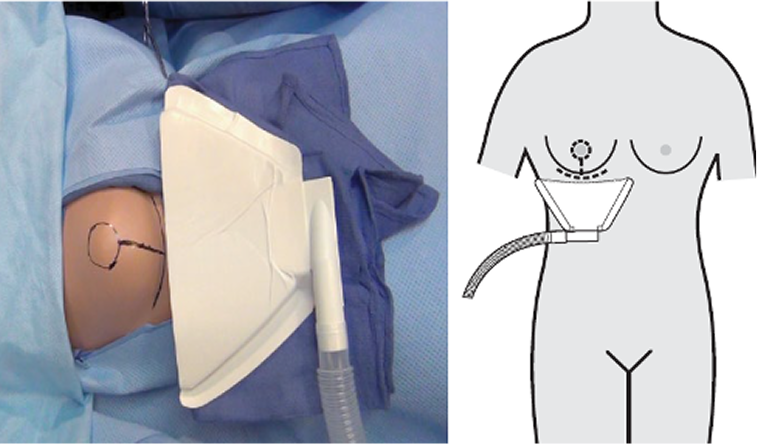

Place the Flamingo just inferior to and within 1” of the inframammary fold incision.

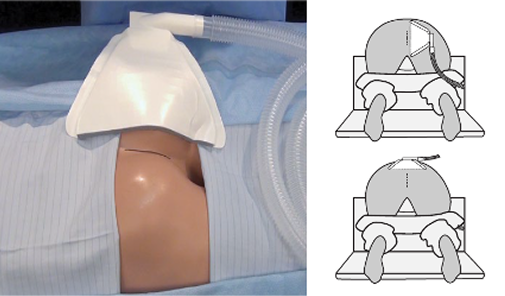

Place the plenum superior or lateral to and within 1” of the anal orifice.
Place the plenum either superior or lateral to and within 1”-1 1/2” of the vaginal orifice with the open cell foam facing the opening. Note: The high smoke capture efficiency of the medium sized Flamingo, coupled with full power from the smoke evacuator is especially suited for fulguration of condyloma viral lesions.

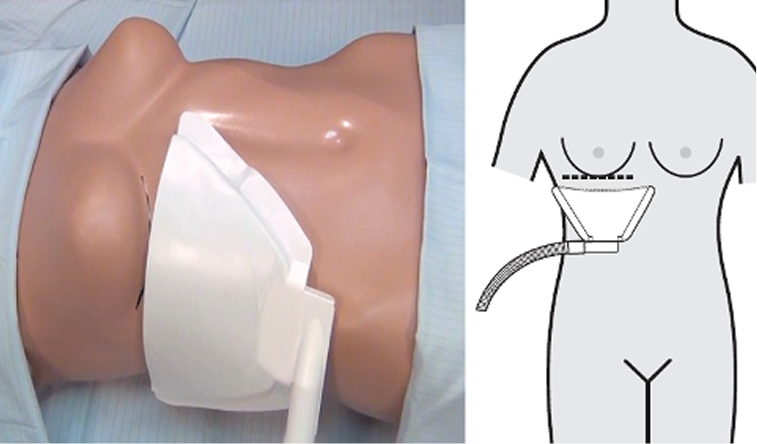

Place the plenum inferior to and within 1” of the inframammary fold. Switch to the smaller size as the dissection proceeds cephalad.

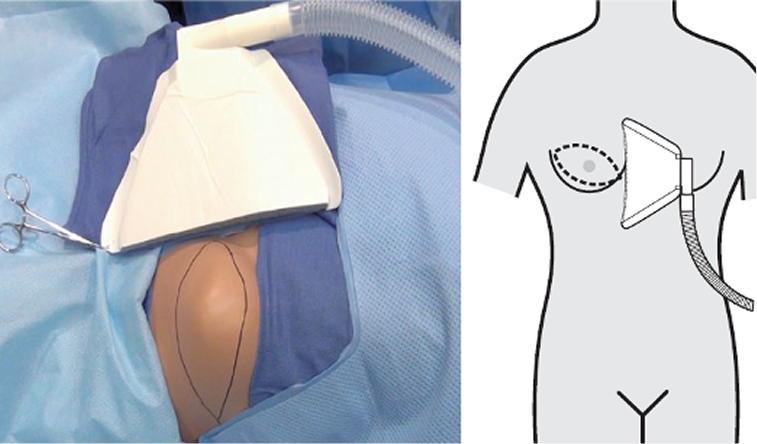

Place the plenum medial to the incision to start. Switch to the medium sized Flamingo as the dissection proceeds medial to lateral and into the axilla.
Place the plenum within 1”-1 ½” of the incision.
Place the plenum parallel to and within 1”-1 1/2” from the incision.
